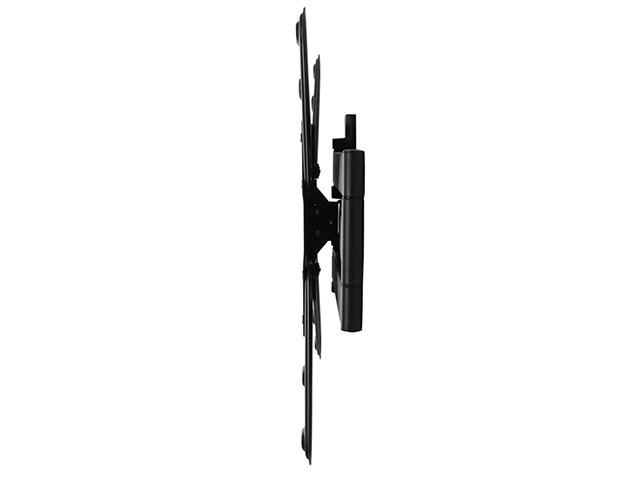

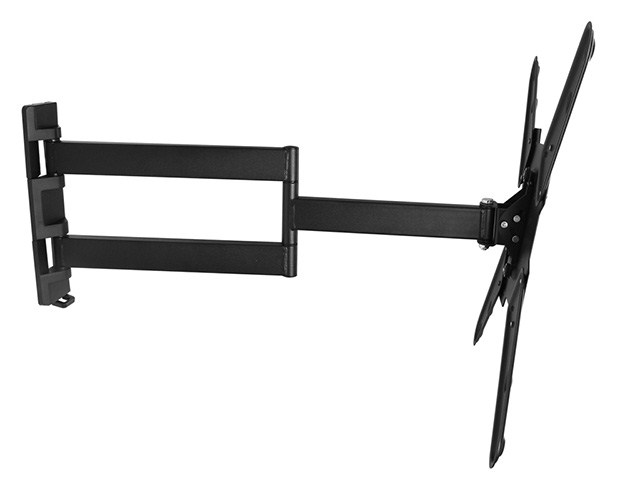

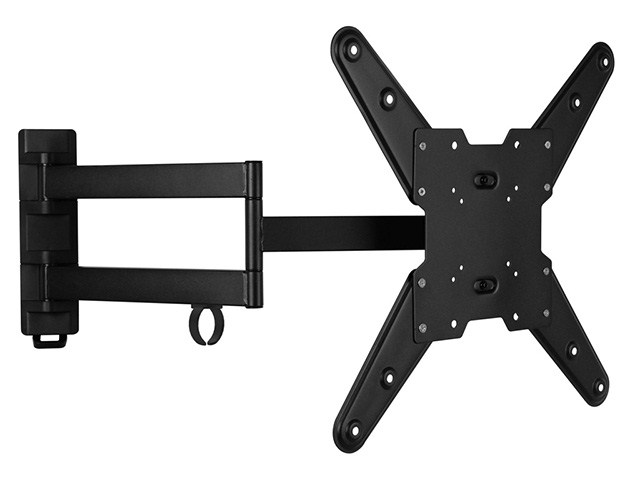

Corner Cantilever Mount for 23" - 42" Flat Panel Displays

Corner Cantilever Mount for 23" - 42" Flat Panel Displays

Corner Cantilever Mount for 23" - 42" Flat Panel Displays

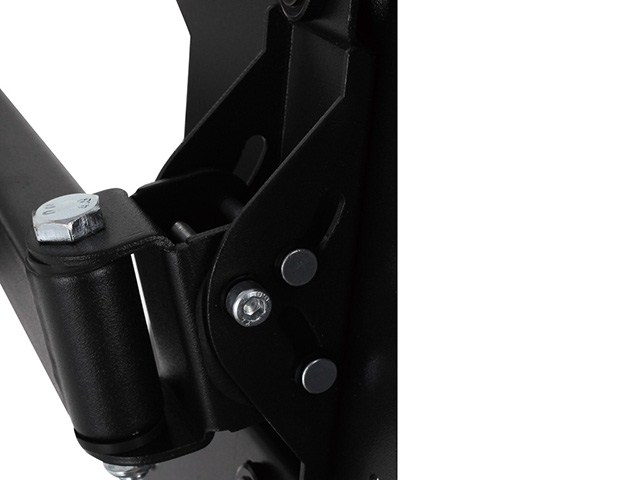

Tilting mechanism
Click to enlarge image(s)
What good is having your flat panel LED, LCD or plasma HD television mounted on the wall if you can't see the screen well from where you're sitting? If you would like to sit in any seat around your room and still be able to get the best direct view of your HD television screen, you need a full motion articulating wall mount with a swivel arm that will allow you to pull the TV away from the wall and swivel it left or right to face you directly.

If you want flexibility, durability and style wrapped into one corner-friendly swiveling TV mounting bracket, the LGLI-M-10477 Single-Arm Cantilever Wall Mount is the best one for you. This full motion articulating bracket supports adjustments in three dimensions; it can pivot and swivel left and right a full 180 degrees, tilt 15 degrees up or down, and extend a 77-pound flat screen HDTV up to 24 inches from the wall safely. The LGLI-M-10477 Single-Arm Cantilever Wall Mount is designed to fit VESA mounting patterns of 75x75 up to 400x400, which includes most flat screen HD televisions and LCD monitors 23 to 42 inches in size. Its single-stud wall mounting plate and long cantilever extension arm make it perfect for both single wall and cater-cornered installations. This corner-friendly HD television bracket includes a built-in bubble level and can be rotated +/- 3 degrees once mounted, making your final leveling adjustments a piece of cake. Being that it is UL Certified, the LGLI-M-10477 has undergone and passed rigorous tests for safety and reliability, and it comes with a 100% satisfaction guarantee.

The LGLI-M-10477 Corner Cantilever TV Mounting Bracket Kit includes all necessary hardware:
  • 1 swivel & tilting cantilever extension arm assembly with tightening knob
  • 1 bag of assorted VESA mounting bolts, stud bolts, spacers, washers and cable management clips
  • 1 Easy-to-read single page instruction guide
Buy this quality full motion corner-cantilever TV bracket from us today for the best price possible and pay No Shipping and Handling Charges. Also as a courtesy, we will email you delivery tracking info so you can easily keep up with the status of your order. With excellent customer service like this, top-notch flat screen TV mounts at the best prices, an easy & secure checkout, and Free Shipping, why shop anywhere else? Buy it here today!
Specifications
* TV Size Range: Most 23 - 42 inches
Maximum TV Weight: 77 lbs.
Mounting Pattern Compatibility: Vesa compliant: 75x75 up to 400x400
TV Mounting Holes: From 2.8" up to 16" apart horizontally and vertically
Mounts on studs single-stud
Wall Plate Dimensions: 2.8" x 9.9"
Built in Level No
Tilt Range: +/- 15 degrees (up and down)
Swivel Range: +/- 180 degrees (left and right)
Rotation Range: +/- 3 degrees (clockwise and counterclockwise)
Extension from the wall: 2.2" to 24"
Construction: Steel and plastic
Cable Management Yes
UL Certified Yes
Shipping Weight 12 lbs.
Features Benefits
Full motion mount, featuring +/- 15 degree tilt, and +/- 180-degree swivel Allows for multiple-angle viewing pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.
Ultra slim body Perfect for lighter-weight slimmer televisions.
Manufacturer's Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
