Heavy Duty (Dual Arm) Full-Motion Mount for 32 - 70" Flat Panel TVs

Heavy Duty (Dual Arm) Full-Motion Mount for 32 - 70" Flat Panel TVs

Heavy Duty (Dual Arm) Full-Motion Mount for 32 - 70" Flat Panel TVs
Click to enlarge image(s)
Before mounting your LCD, LED or plasma flat panel HD television on the wall, you should figure out how to position the TV so that it best accommodates the view points of everyone that’s going to watch it at any given time.  Using a full-motion articulating-swivel flat screen HDTV wall mount bracket makes this task simple because it is so versatile.  A full motion articulating-swivel mounting bracket will allow you to mount your flat panel HDTV on virtually any wall in the room and be able to extend the TV from that wall, tilt it up or down if necessary and pivot it left or right to face in your direction so that you may get an excellent view of the television screen regardless of where you’re sitting.  However, if you feel like your TV is rather heavy, a full motion articulating-swivel bracket with a heavy-duty dual-arm extension is the best type for you to buy.
For example, some of the older 42+ inch LCDs, and plasmas and the thicker back-lit LEDs, are heavier than modern-day ultra slim plasmas and edge-lit LEDs. Heavy duty dual-arm full motion tilting/pivoting HDTV mounting brackets are made with a thicker grade of steel than similar mounting brackets for lighter televisions.  The dual-arm design provides the added strength and balance necessary to support the weight of heavier flat panel HD televisions.  Using a lightweight bracket, on the other hand, for a heavy TV may put the safety of that plasma, LCD or back-lit LED and other people at risk if the set were to fall off the wall and break.  Although it may cost a little more than a lightweight bracket, if you can afford spending the extra cash, it’s worth it to buy a heavy duty dual-arm mount bracket and be safe rather than sorry.

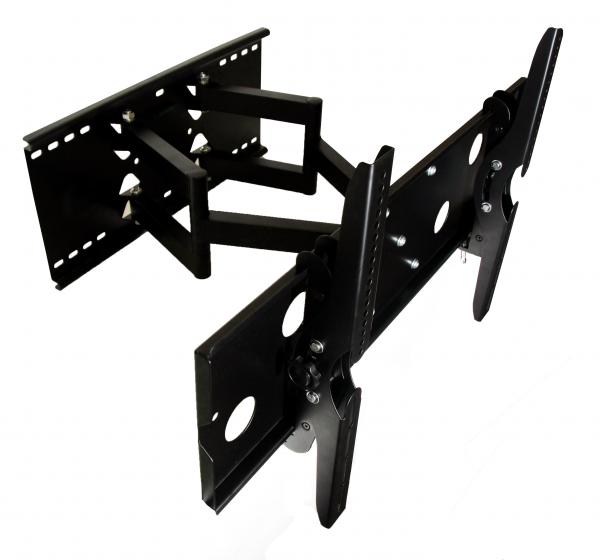

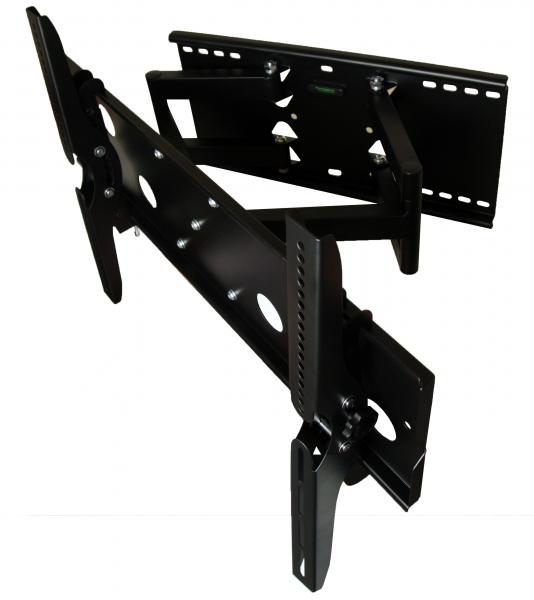

The LGLI-MI-310B heavy-duty full motion articulating-swivel mount bracket for 32 – 70 inch HDTVs is one of the sturdiest, most affordable heavy duty dual-arm TV wall mounting solutions available. This super strong mount makes it very safe to hang 32 to 60+ inch LCD, LED or plasma televisions weighing up to 200 pounds on the wall in a way that you can enjoy their stylish look and flawless picture quality from any seat in the room.  Its well-balanced retractable dual-arm rotating extension allows you to extend your TV up to 20.3 inches from the wall, tilt it 15 degrees up or down and pivot it 45 degrees to the left or right to get the best viewing angle possible from where you’re sitting. The LGLI-MI-310B is also VESA compliant, which means it is guaranteed to fit most flat screen HDTVs 32 – 70 inches. This complete package comes with all the necessary mounting hardware for you to do an easy, clean, professional-looking installation.
LGLI-MI-310B Full Motion Dual-arm Articulating-Swivel Mount Bracket for 32 – 70” HDTVs package includes:
  • 1 Full Motion Dual-arm Mount Assembly
  • 2 TV Mounting Brackets with tilting levers & tightening knobs
  • Built-in bubble leveler
  • 1 bag of assorted VESA compliant TV mounting bolts, stud bolts, washers, dry wall anchors, and spacers
  • Easy-to-read instruction guide
Here at our TV wall mounts superstore we offer the LGLI-MI-310B Full Motion Dual-arm Articulating-Swivel Mount Bracket package at the very best discount price possible. If you have any questions about the LGLI-MI-310B package please let us know and we will be more than happy to assist you.  With our fast, free shipping policy, unbeatable discount pricing, and friendly customer service, why buy your TV wall mounting hardware anywhere else but right here? Enjoy shopping!
* TV Size Range: 32" - 70"
Maximum TV Weight: 200 lbs. (90.9 kgs.)
Mounting Pattern Compatibility: Universal & up to VESA 700 x 400
TV Mounting Holes: Up to 30.3" apart horizontally and up to 18" vertically
Wall Plate Dimensions: 19.7" wide by 10" high
Tilt: +/- 15 degrees up or down
Swivel: Up to 45 degrees to left or right
Extension from the wall: From 4.5" up to 20.3"
Material: Solid steel construction
Shipping Weight: 30.9 lbs.
Features Benefits
Swivel motion 45 degrees to the right or left. Allows for multiple-angle viewing pleasure.
Professionally engineered powder coated steel construction Provides a sleek, high-tech look.
Continuous tilt motion is possible. No tools necessary.
Includes Anti-theft Security Locking Mechanism Prevents the TV from unlatching from mount.
Built in lateral shift & bubble level Allows for easy installation & centering of the TV on your wall.
Includes all hardware & instructions necessary for installation.
Warranty: 5 years

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
