Deluxe Full Motion Cantilever Mount for 17" - 37" Flat Panel TVs & Monitors

Deluxe Full Motion Cantilever Mount for 17" - 37" Flat Panel TVs & Monitors

Deluxe Full Motion Cantilever Mount for 17" - 37" Flat Panel TVs & Monitors
Click to enlarge image(s)
Mounting your flat panel LED-LCD television in the corner or where space is limited on your wall can be difficult, even for smaller TVs, if you don’t have the right kind of mounting bracket.  Oftentimes regular articulating flat screen TV brackets have wall mounting plates that take up too much space on the wall and also do not provide a large enough degree of extension and swivel motion to be properly mounted in corners.

To minimize the amount of wall space occupied by your bracket’s mounting plate, you need to use an articulating-swivel TV bracket that has a single-stud wall mounting plate instead of a double-stud mounting plate.  The much narrower wall plate of a single-stud articulating bracket requires only one wall stud (as its name suggests) to affix the mount to the wall securely.  Double-stud articulating mounting brackets, on the other hand, have wall plates that require two parallel wall studs to mount, causing them to be wider and take up far more space on your wall.

Furthermore, to afford yourself the option of corner mounting your small to mid-size flat panel LED-LCD television, you must use a full-motion cantilever arm mount.  The best cantilever arm mounts have a single stud mounting plate and adjust with a more generous degree of extension, swiveling and tilting motion than regular articulating flat screen brackets. These features together will allow you to attach the mounting plate to the single innermost stud in the corner,
swing your mounted flat screen TV between the two walls for a neat, cater-cornered appearance and tilt it down slightly for the best viewing angle.

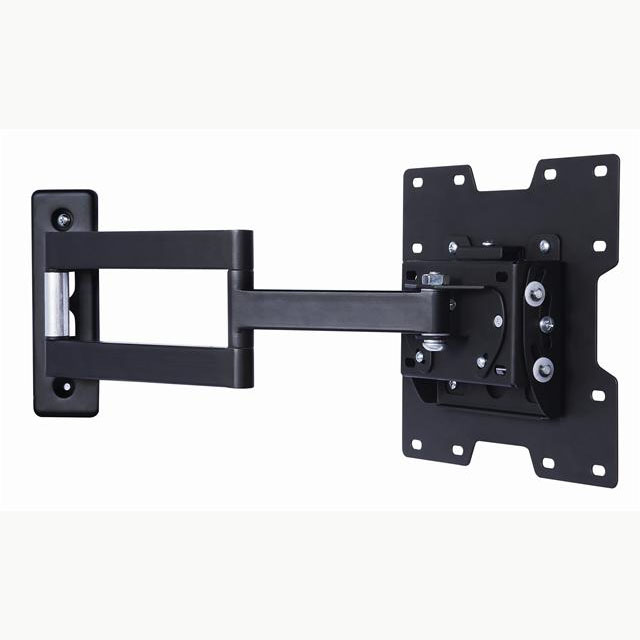

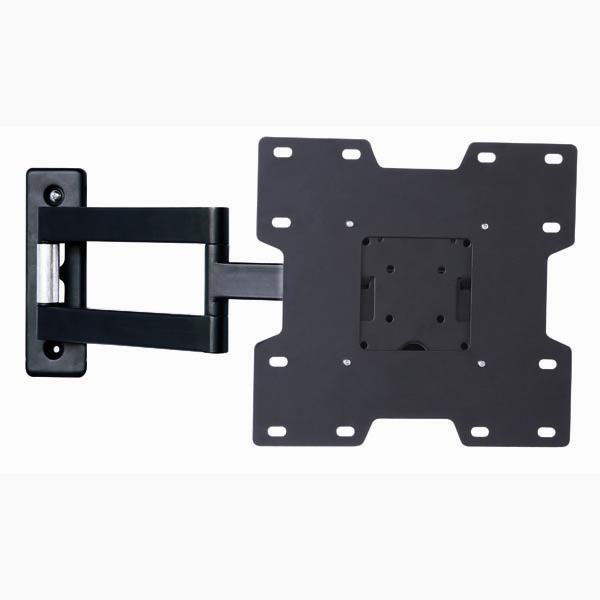

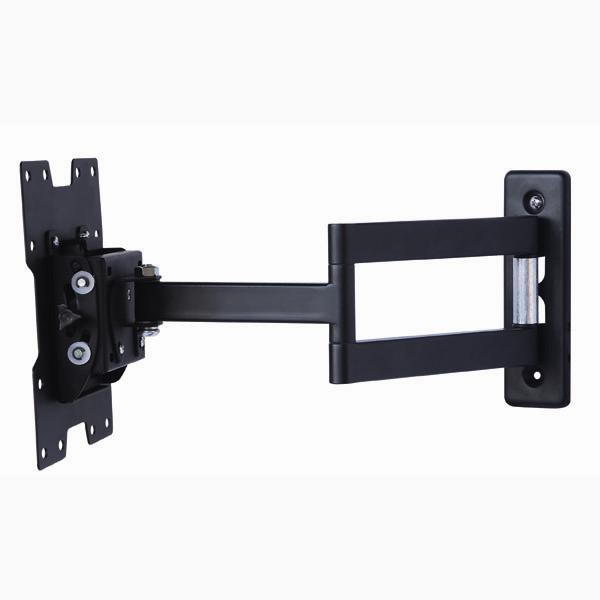

Our easy-to-install LGLI-M-10476 Deluxe Full-Motion Cantilever Mount is the best full-motion articulating bracket for mounting 17 to 37-inch flat panel LED-LCD televisions up to 77 pounds to walls with limited space and in corners. In spite of its exceptionally affordable price, this super durable cantilever wall bracket has undergone extensive safety testing and has been certified by Underwriters Laboratories (UL), which ensures it will perform safely and reliably when installed properly. The LGLI-M-10476 is a fully articulating and retractable wall mount that gives you an amazing 24 inches of extension from the wall, tilts 15 degrees up or down and swivels a full 180 degrees right or left.  Its single swing-out arm design and smooth angle adjustment make it the best solution for achieving an optimal viewing angle for your small to mid-size flat screen TV and for mounting it neatly in a corner.

LGLI-M-10476 Deluxe Full-Motion Cantilever Mount for 17-37 inch TVs Package includes:
  • 1 Deluxe swivel & tilting extension arm assembly with tightening knob
  • 1 bag of assorted VESA mounting bolts, stud bolts, spacers, washers and cable management clips
  • 1 Easy-to-read single page instruction guide
Here at TVMounts USA we offer the LGLI-M-10476 Deluxe Full-Motion Cantilever Mount for 17-37 inch TVs Package for the best discounted price available. Not only that, but we provide A-rated customer service, Free Shipping and a fast, safe and secure checkout process.  If you have any questions about our LGLI-M-10476 Deluxe Full-Motion Cantilever Mount or any other articulating LED-LCD TV mounting brackets, please contact us and a member of our friendly, knowledgeable staff will be more than happy to assist you. With our 100% customer satisfaction guarantee, courteous staff, and everyday cheap discount prices, why buy your full-motion flat panel articulating corner mount anywhere else? Come visit us today for the best online shopping experience!
Specifications
* TV Size Range: Approx. 17" - 37"
Maximum TV Weight: 77 lbs.
Mounting Pattern Compatibility: Universal and VESA compliant: 75 x 75, 100 x 100, and 200 x 200
TV Mounting Holes: Up to 8" apart horizontally , up to 8" vertically
Mounts on studs: single-stud
Wall Plate Dimensions: 2.8" x 9.9"
Front Plate Dimensions: 9.3" x 9.3"
Tilt Range: +/- 15 degrees (up and down)
Swivel Range: +/- 180 degrees (left and right)
Rotation Range: +/- 3 degrees (clockwise and counterclockwise)
Minimum Extension from the wall: 2.2 inches
Maximum Extension from the wall: 24 inches
Construction: Solid steel
Cable Management: Yes
UL Certified Yes
Shipping Weight 10 lbs.
Features Benefits
Full motion mount, featuring +/- 15 degree tilt, and +/- 180-degree swivel Allows for multiple-angle viewing pleasure.
Can be rotated +/- 3 degrees Allows for final leveling adjustments.
Quick mounting single-stud wall plate Ideal for corner installations or where wall space is limited.
Solid steel construction Ensures long lasting durability.
Certified by Underwriters Laboratories (UL) Ensures that mount will perform safely and reliably.
Manufacturer Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
