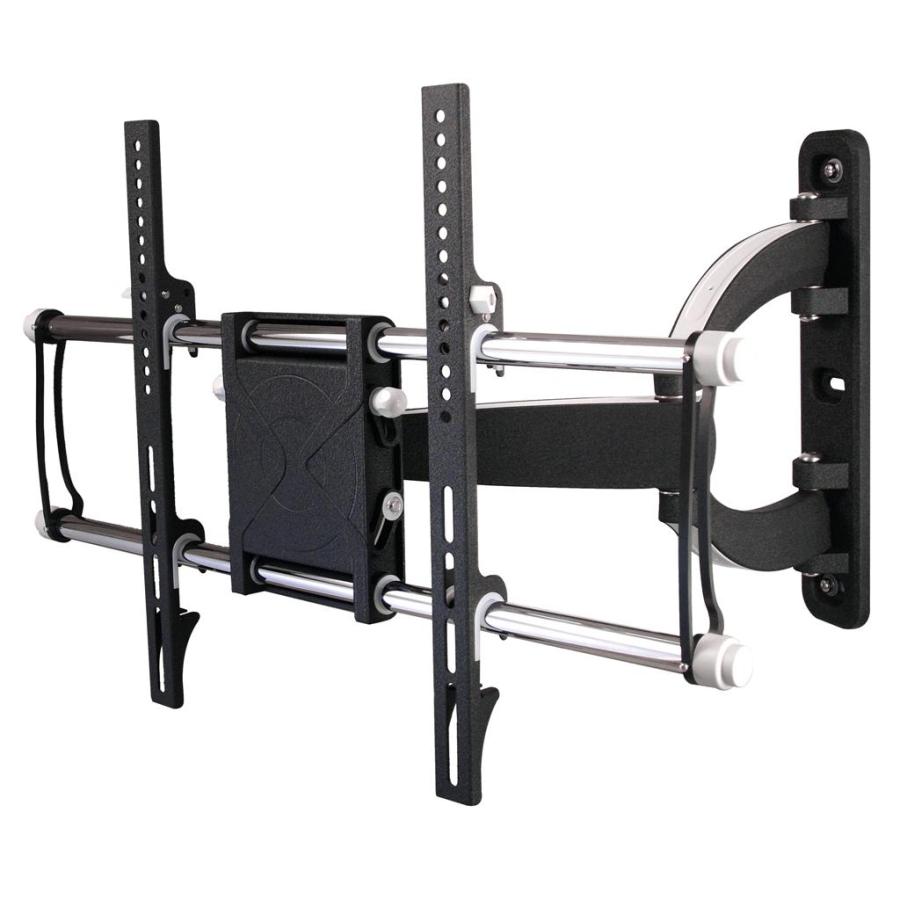

COTYTECH MW-5A1B Full Motion Corner Mount for 32" - 60" TVs

COTYTECH MW-5A1B Full Motion Corner Mount for 32" - 60" TVs

COTYTECH MW-5A1B Full Motion Corner Mount for 32" - 60" TVs
Click to enlarge image(s)

If you want to elevate your big screen flat panel plasma, LCD or LED high definition TV but have limited space on your walls to mount it due to window placements or wall décor, corner mounting your flat screen display is a great idea.  You will need a durable corner-cantilever articulating TV wall mount bracket to do the job properly.  However, to achieve the cleanest professional appearance of your flat panel TV corner mount installation you need to make sure to buy a bracket equipped with a wall mounting plate that’s narrow so it will fit close enough to the corner to be totally concealed behind the television after the job is done.  The last thing you want is to leave a portion of the bracket’s mounting plate peeking out visibly from behind the TV once it’s mounted in the corner.

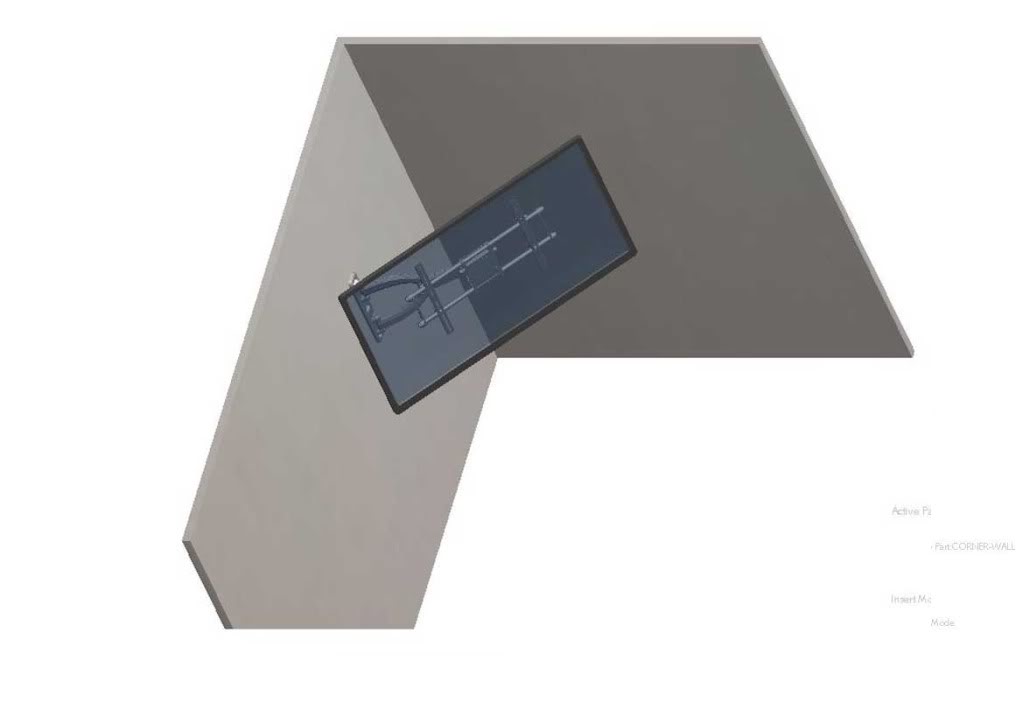

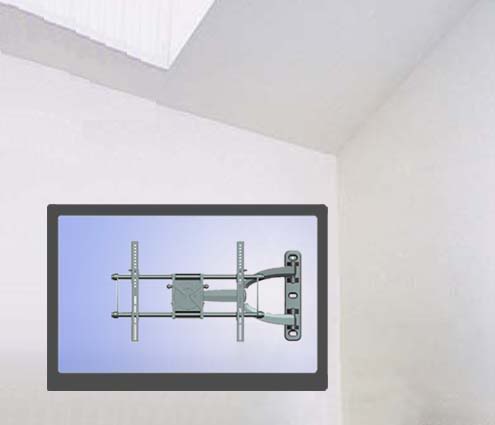

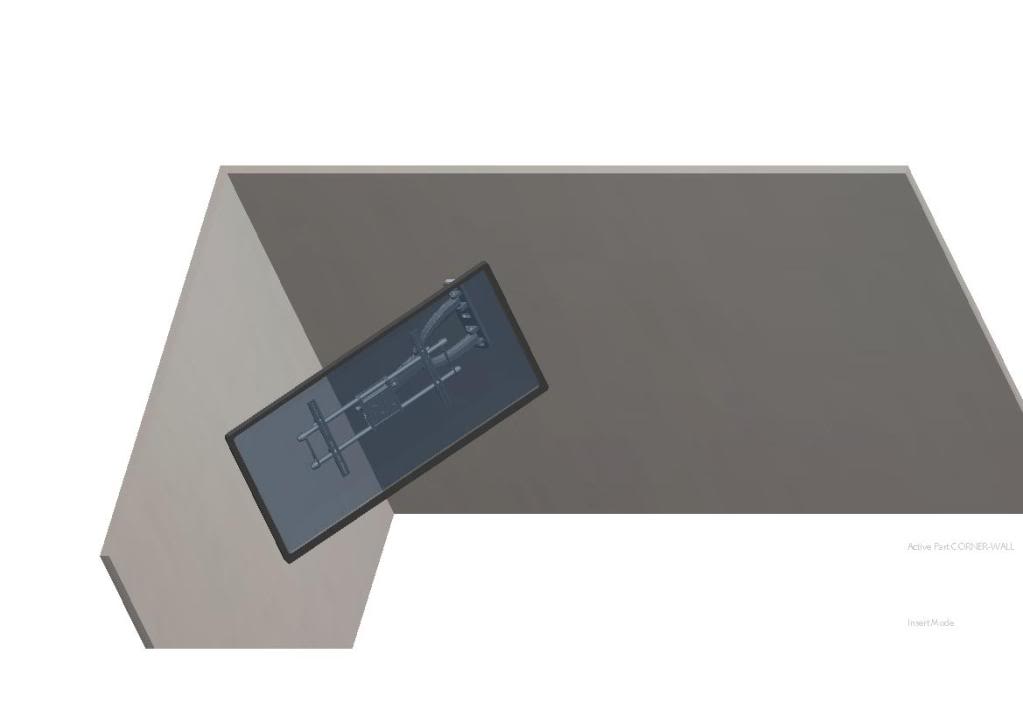

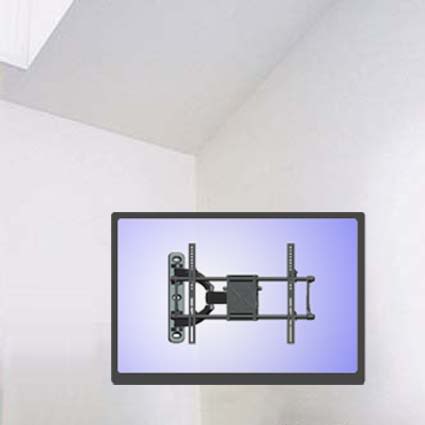

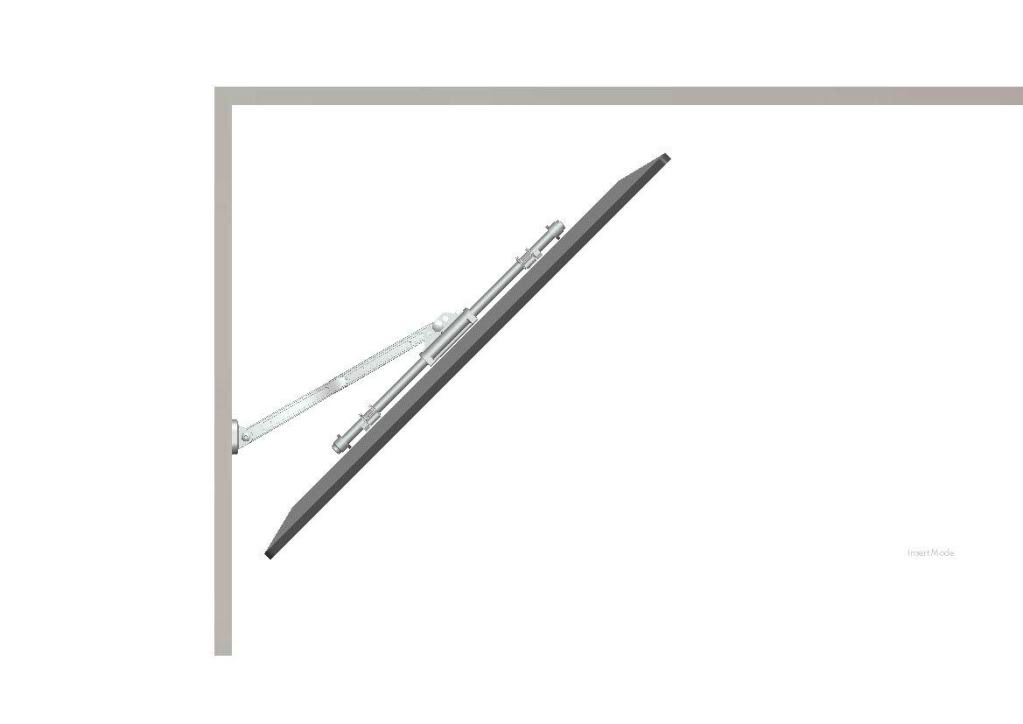

Our easy-to-install LGLI-MW-5A1B full motion corner-cantilever articulating TV wall mount bracket, manufactured by Cotytech, has a very slim single-stud wall mounting plate that can be bolted very close to the corner where the two walls meet.  This assures that all the hardware will be hidden completely behind your TV once you swing the TV back and cater-corner it between the two walls.  (See on-page illustrations to the right).  This rugged articulating cantilever TV wall mount bracket boasts a lightweight die-cast aluminum construction that's durable and fashionable at the same time.  For added functionality, the LGLI-MW-5A1B full motion corner-cantilever TV wall mount bracket also offers an amazing weight capacity of 120 pounds; it features a 5-degree up and 15-degree down tilt; it can extend 23.1 inches from the wall and swivel a full 180 degrees left and right.  This Cotytech corner-cantilever TV wall mount bracket is one of the most durable, technologically advanced and visually appealing flat panel wall display brackets on the market today.

Compared to other models, the LGLI-MW-5A1B is one of our elite corner TV mounts; however, we offer this first-class bracket at the most affordable discount price possible. The kit comes brand new, is packaged carefully with all the necessary hardware and shipped to you directly for no additional fee. If you need a great cater-corner mounting solution for your big screen flat HDTV and you have the extra money to invest on a premium quality corner-cantilever articulating TV wall mount bracket that’s lightweight, super durable and fashionable all at the same time, the Cotytech LGLI-MW-5A1B corner TV wall bracket is the right one for you.

Please Note: This TV wall mount is specifically designed for VESA mounting patters up to 600 x 400.


Specifications
* TV Size Range: Most TVs 32" - 60"
Maximum TV Weight: 120 lbs. (54.5kgs.)
Mounting Pattern: Universal and VESA compliant: 100 x 100 to 600 x 400
Mounts on Studs: single-stud
Wall Plate Dimensions: 3.2" wide by 16.9" high
Tilt: +5 (upward) to -15 degrees (downward)
Swivel: Max 180 degrees left and right
Roll: -3 to +3 degrees
Extension from the wall: 3.4" up to 23.1"
Material: Die-cast Aluminum
Shipping Weight: 21 lbs.
Features Benefits
Works with most flat panel TVs Including plasma, LCD and LED TVs.
Compatible with large mounting patterns Works for large TVs that are hard to find a mount for. (Example: Most of Sharp 65"+ TVs.)
Full-motion design, featuring tilt, pan or swivel Allows for multiple-angle viewing pleasure.
Lightweight quick-mounting design Allows for an easy installation.
Lock-in place feature Prevents TV from unlatching to ensure a secure installation.
Quick release feature Allows for easy removal of TV from the horizontal bars if you need to take off TV often.
Die-cast Aluminum construction Provides maximum support in a lightweight mount.
Warranty: 5 years

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
