Deluxe Cantilever Swiveling Corner Mount for 32" - 46" TVs

Deluxe Cantilever Swiveling Corner Mount for 32" - 46" TVs

Deluxe Cantilever Swiveling Corner Mount for 32" - 46" TVs

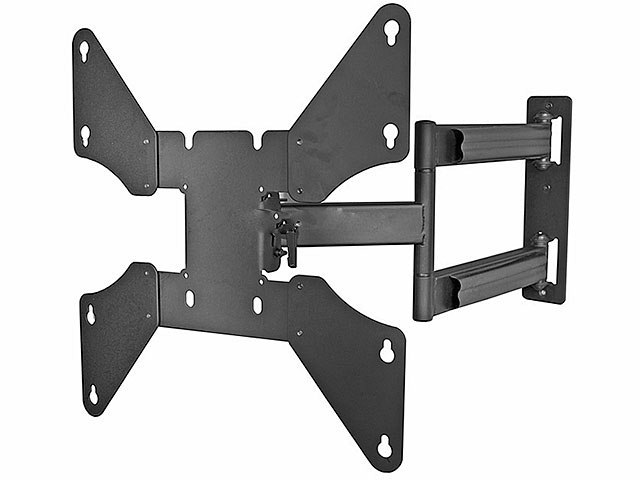

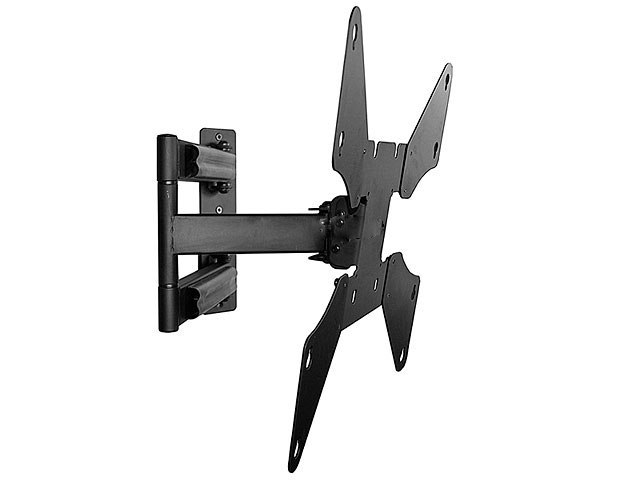

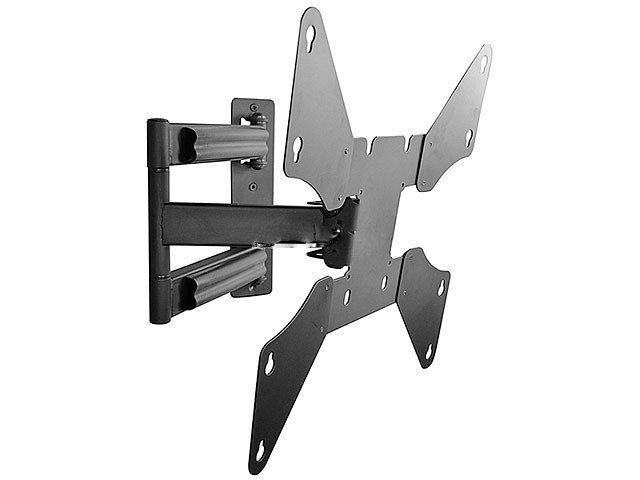

Click to enlarge image(s)

Why put your TV on a table or stand where it can get knocked over and damaged, or even worse injure a child or pet. Instead, mount it securely and safely to the wall using this Adjustable Wall Mounting Corner Bracket from TVMounts USA!

The LGLI-M-7846 Deluxe Cantilever Swiveling Corner Mount for 32" to 46" TVs is designed to mount an LCD, LED, or Plasma display with a VESA mounting pattern of 100x100, 200x100, 200x200, 400x200, or 400x400, which includes most 32" to 46" flat panel displays.  This durable bracket supports adjustments in three dimensions; it can be swiveled left and right 180° and can be tilted up to 5° upward and 15° downward.  Additionally, it can be extended from a minimum distance to the wall of 3.2" to a maximum of 24.0," providing a sleek low profile appearace when the arm is fully retracted and a large range of motion when it's extended.  Because of it's single stud mounting plate and extendable cantilever arm design, you can use this bracket to mount your LCD, LED or Plasma display in a cater-corned fashion as well.  These features come in handy expecially in rooms where open wall space may be limited or where the layout of your seating furniture caters to having the TV positioned in the corner instead of flat on one wall.

The LGLI-M-7846 can be mounted to any type of wall (brick, concrete, wood stud, etc.) and can safely hold up to 125 lbs (including the weight of the mount itself).  It also features cable management clips to help keep your installation clean and professional looking.

The LGLI- M-7846 Deluxe Cantilever Swiveling Corner Mount package includes:

  • 1 Deluxe swivel & tilting extension arm assemply with tightening knob
  • 1 bag of assorted bolts, stud bolts, spacers, washers and cable management clips
  • 1 easy-to-ready single page instruction guide
Here at TVMounts USA we offer the LGLI-M-7846 Deluxe Cantilever Swiveling Corner Mount for 32-46 inch TVs Package for the best discounted price available. Not only that, but we provide A-rated customer service, Free Shipping and a fast, safe and secure checkout process.  If you have any questions about our LGLI-M-7846 Deluxe Cantilever Mount or any other articulating LED/LCD/Plasma TV mounting brackets, please contact us and a member of our friendly, knowledgeable staff will be more than happy to assist you. With our 100% customer satisfaction guarantee, courteous staff, and everyday cheap discount prices, why buy your full-motion flat panel articulating corner mount anywhere else? Come visit us today for the best online shopping experience!
Specifications
* TV Size Range: Approx. 32 - 46 inches
Maximum TV Weight: 125 lbs.
Mounting Pattern Compatibility: Vesa compliant:100x100 up to 400x400
TV Mounting Holes: Up to 16" apart horizontally and 16" apart vertically
Mounts on studs single-stud
Wall Plate Dimensions: 3.0" x 12.5"
Front Plate Dimensions: 18.6" x 17.3"
Tilt Range: +5 (upward), up to -15 (downward)
Swivel Range: +/- 180 degrees (left and right)
Rotation Range: N/A
Minimum Extension from the wall: 3.2 inches
Maximum Extension from the wall: 24 inches
Construction: Solid steel
Cable Management: Yes
Shipping Weight: 17 lbs.
Features Benefits
Full motion mount, featuring +5 to -15 degree tilt, and +/- 180-degree swivel Allows for multiple-angle viewing pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.
Solid steel contruction Ensures long lasting durability.
Manufacturer's Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
